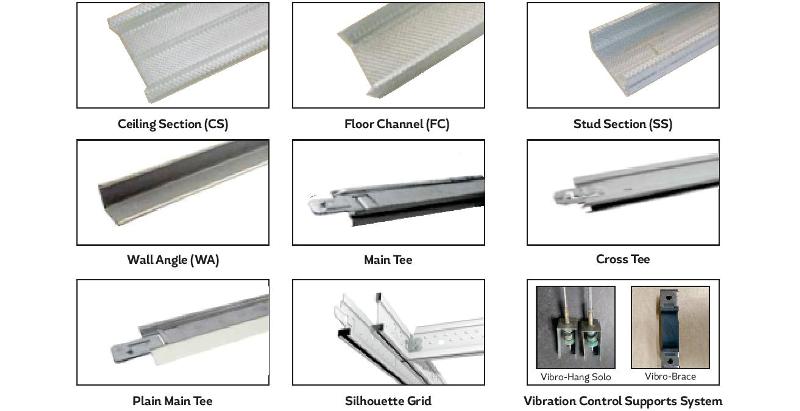

Floor and Ceiling Channel (FC50/72/148): Used as the horizonal metal section and anchored to the ceiling and floor of the metal framed partition systems. The channel is 0.55 mm thick, in width of 50mm, 72mm and 148mm, with two equal flanges of 32mm each. Length of each FC is 3600mm.

Stud Section (SS48/70/146): Used as the vertical member between the ceiling and floor channels of metal framed partition system. It is 0.55mm thick with one flange of 36mm and other flange of 34mm and has cut-outs along its length for running the services.

Accessories for T Grid

T Grid: T Grid Series consist three components - wall angles, main T and cross T. It has two broadline width 15mm and 24mm, two variants and two colour options (black and white). T15 represents broadline width 15mm andT24 represents broadline width 24mm.

Wall Angle (WA15/24): Made of G. I. cold rolled angle section with 0.30 mm thickness and two equal legs of 15 mm/24 mm each. It is used as a perimeter angle in grid ceiling system. Length of each WA is 3000mm.

Main T (MT15/24): 3600 mm long, 0.30 mm thick G. I. cold rolled T section with vertical flange and has a 15mm / 24mm wide precoated white / black base. The vertical flange has holes to take on suspension wire. It has slots at 300 mm c/ c to take on cross T (CT) section.

Cross T (CT15/24):   1200 / 600 mm long, 0.30 mm thick G. I. cold rolled T section with vertical flange and has 15 mm / 24 mm wide precoated white / black base. It has notch on both ends to insert in main T section and to lock with each other to form a grid of 600 x 600 or 600 x 1200
